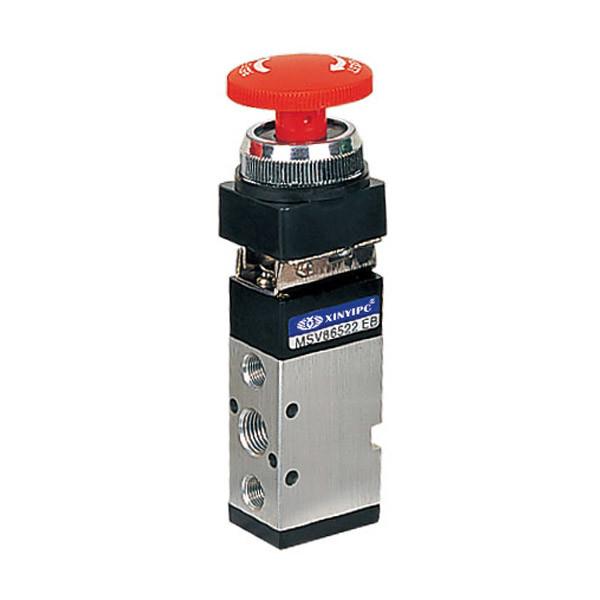

MSV86522 5 Way 2 Position Pneumatic Valve , Pneumatic Mechanical Valve No Installation On

Name: MSV86522 5 Way 2 Position Pneumatic Valve Pneumatic Mechanical Valve No Installation On
Brand: PRIUS,XINYI or OEM
Price: 1 USD

Best MSV86522 5 Way 2 Position Pneumatic Valve , Pneumatic Mechanical Valve No Installation On wholesale

Brand Name : PRIUS,XINYI or OEM

Model Number : MSV86522

Place of Origin : Ningbo,China

MOQ : 10pcs

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 5000pcs per month

Delivery Time : 10~15 working days

Packaging Details : bag+box+catons+pallet

Name : hand operated air valve

Working Medium : 40 Micron Filtered Air

Pressure Range : 0~0.8Mpa

Temperature Range : 0~60℃

Port Size : G1/8",G1/4"

Material : Aluminum

Colour : red,green

Fix Type : Roller Type

Contact Now

MSV86522 series 5 / 2 way Mechanical Valve Body without Installation on

MSV series Mechanical control valve two position three way MSV9832 and two position five way MSV8632 port size G1/8 and G1/4 Model no.MSV86522-TB with eight different operating mode,body material aluminum alloy

Quick Detail:

* MSV series mechanical valve
* Aluminum alloy valve body
* Two position Three way and Two position Five way
* Port size G1/8”,G1/4”
* Various actuator model for slection
* Compact design,Flexible application
* Stable with long service life

Applications:

MSV series mechanical valve working by outside mechanical force to control directional switch,when outside force disappear,Actuator return to original situation.Mechanical control valve have memory function

Specifiction

Model	MSV86321	MSV86522	MSV98322
Working Medium	40 Micron Filtered Air
Position and Way NO.	3/2 Way	5/2 Way	3/2 Way
Effective Sectional Area	12mm²(CV=0.67)	16mm²(CV=0.89)	16mm²(CV=0.89)
Port Size	G1/8″	G1/4″	G1/4″
Working-pressure Range		0~0.8MPa
Operating Temperature		0~60℃

MSV86522 5 Way 2 Position Pneumatic Valve , Pneumatic Mechanical Valve No Installation On

Series	Symbol / Model	PP	PPL	LB	TB	EB	PB	R
MSV86522	A	114	119	133	136.5	134	131	107.5
MSV86522	B	39.5	24.5	26.5	36.5	39.5	37.5	42.5
MSV98322	A	106	111	125	129.5	126	123	99.5
MSV98322	B	39.5	24.5	26.5	36.5	39.5	37.5	42.5
MSV86321	A	66	71	85	88.5	86	83	59.5
MSV86321	B	39.5	24.5	26.5	36.5	39.5	37.5	42.5
